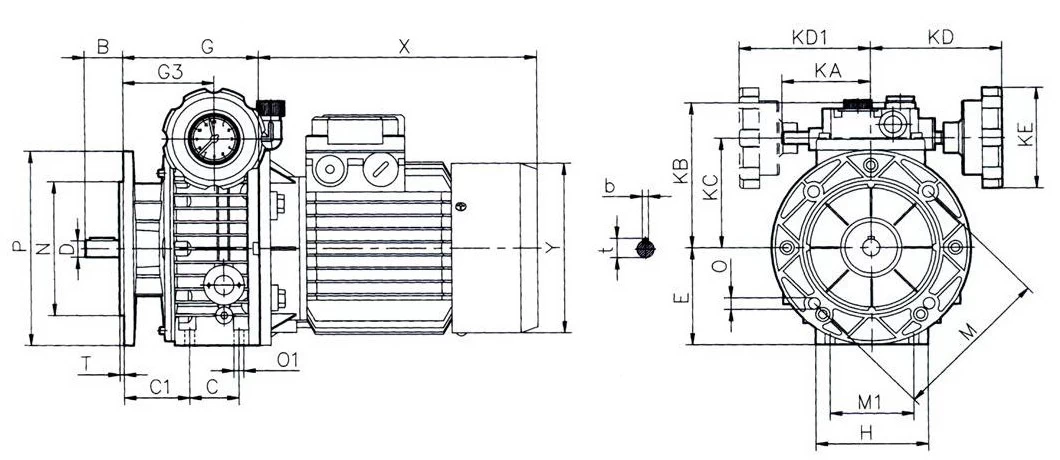

B
|
C
|
C1
|
D(j6)
|
E
|
G
|
G3
|
H
|
M
|
M1
|
N
|
O
|
O1
|
|
UDL002
|
23
|
50
|
46
|
11
|
70
|
112.5
|
64.5
|
72
|
115
|
60
|
95
|
9
|
M6
|
|
UDL005
|
30
|
40
|
53
|
14
|
80
|
110
|
74
|
90
|
130
|
77
|
110
|
9
|
M8
|
|
UDL010
|
40
|
58
|
60
|
19
|
100
|
139
|
85.5
|
98
|
165
|
84
|
130
|
11
|
M8
|
|
UDT020
|
50
|
-
|
-
|
24
|
126
|
188
|
115
|
241
|
165
|
-
|
130
|
11
|
-
|
|
|
P
|
T
|
KA
|
KB
|
KC
|
KD
|
KD1
|
KE
|
b
|
t
|
|
UDL002
|
140
|
3.5
|
71
|
111
|
78
|
110
|
110
|
85
|
4
|
12.5
|
|
UDL005
|
160
|
3.5
|
71
|
123
|
90
|
110
|
110
|
85
|
5
|
16
|
|
UDL010
|
200
|
3.5
|
79
|
140
|
107
|
120
|
120
|
110
|
6
|
21.5
|
|
UDT020
|
200
|
3.5
|
-
|
144
|
122
|
150
|
-
|
110
|
8
|
27
|
|
|
P1, кВт
|
i
|
n2min
|
n2max
|
M2max
|
M2min
|
|
UDL002
|
0.18
|
0.129-0.645
|
181
|
903
|
2.9
|
1.6
|
|
UDL005
|
0.25
|
0.143-0.714
|
200
|
1000
|
5.9
|
2.2
|
|
UDL010
|
0.75
|
0.143-0.714
|
200
|
1000
|
11.9
|
6.0
|
|
UDT020
|
1.5
|
0.143-0.714
|
200
|
1000
|
24.9
|
12.0
|
